Docker에 Oracle 23ai Free 설치 및 삭제 가이드

OS 환경 : Windows 11 Home (64bit)



SW 환경 : Docker Desktop 4.33.1



DB 환경 : Oracle Database 23.5.0.24.07 ai Free



방법 : 도커에 Oracle 23ai Free 설치 및 삭제 가이드

본문에서는 도커 환경에 오라클 23ai Free 버전을 설치하는 방법을 설명함





도커 설치는 아래 게시물 참조
Windows 11 Home에 Docker 설치 가이드 ( https://positivemh.tistory.com/1153 )



파워쉘 실행 후 아래 명령어로 설치

PS> docker pull container-registry.oracle.com/database/free:latest





pull 실행 완료 후 run 명령 실행

PS> docker run -d --name oracle container-registry.oracle.com/database/free:latest





도커 오라클 로그 확인

PS> docker logs oracle
Starting Oracle Net Listener.
Oracle Net Listener started.
Starting Oracle Database instance FREE.
Oracle Database instance FREE started.

The Oracle base remains unchanged with value /opt/oracle
#########################
DATABASE IS READY TO USE!
#########################
The following output is now a tail of the alert.log:
2024-08-31T13:12:17.209572+00:00
===========================================================
Dumping current patch information
===========================================================
No patches have been applied
===========================================================
2024-08-31T13:12:17.856389+00:00
FREEPDB1(3):Opening pdb with Resource Manager plan: DEFAULT_PLAN
Completed: Pluggable database FREEPDB1 opened read write
Completed: ALTER DATABASE OPEN

정상적으로 설치됨

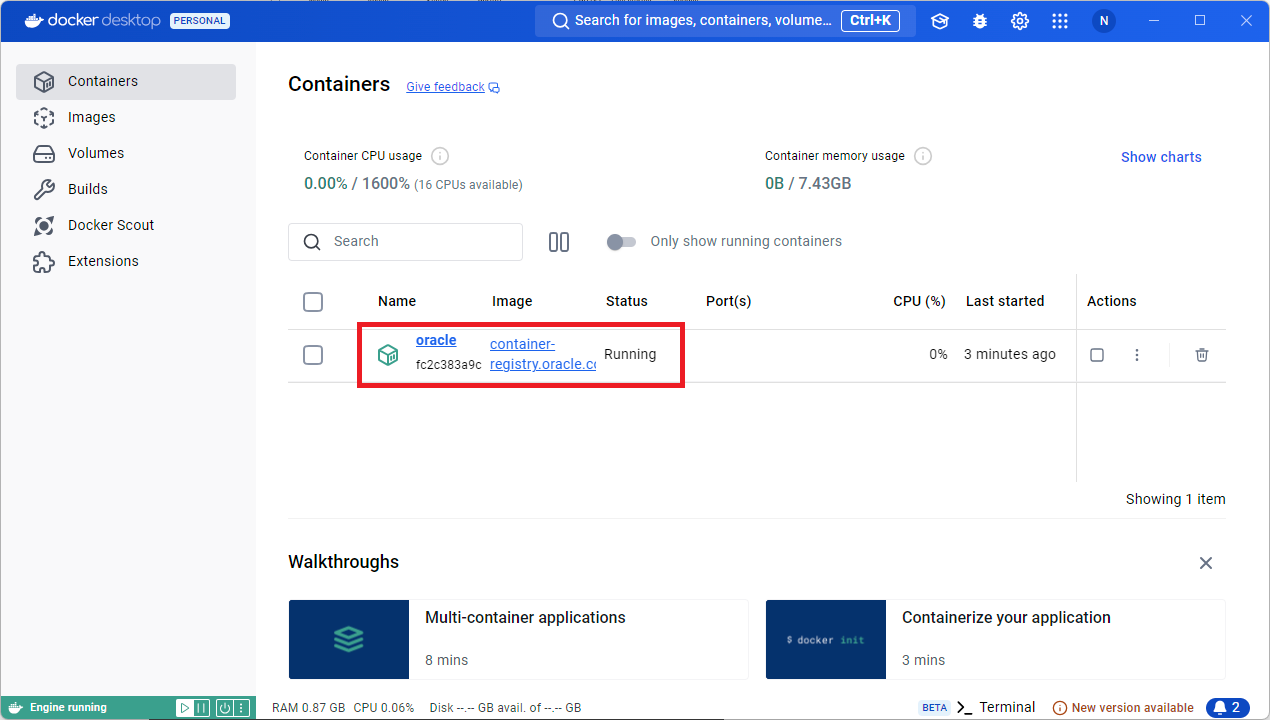

설치 후 도커 데스크톱에서도 확인

정상적으로 설치됨





bash 쉘 접속

PS> docker exec -it oracle bash





setPassword.sh 쉘을 이용해 오라클 접속 패스워드를 oracle 로 변경(sys, system, pdbadmin 유저)

bash-4.4$ ls
setPassword.sh

bash-4.4$ ./setPassword.sh oracle
The Oracle base remains unchanged with value /opt/oracle

SQL*Plus: Release 23.0.0.0.0 - for Oracle Cloud and Engineered Systems on Sat Aug 31 13:19:20 2024
Version 23.5.0.24.07

Copyright (c) 1982, 2024, Oracle.  All rights reserved.


Connected to:
Oracle Database 23ai Free Release 23.0.0.0.0 - Develop, Learn, and Run for Free
Version 23.5.0.24.07

SQL>
User altered.

SQL>
User altered.

SQL>
Session altered.

SQL>
User altered.

SQL> Disconnected from Oracle Database 23ai Free Release 23.0.0.0.0 - Develop, Learn, and Run for Free
Version 23.5.0.24.07

설정됨





참고용 setPassword.sh 내용 확인

bash-4.4$ cat setPassword.sh
#!/bin/bash
# LICENSE UPL 1.0
#
# Copyright (c) 1982-2023 Oracle and/or its affiliates. All rights reserved.
#
# Since: November, 2016
# Author: gerald.venzl@oracle.com
# Description: Sets the password for sys, system and pdb_admin
#
# DO NOT ALTER OR REMOVE COPYRIGHT NOTICES OR THIS HEADER.
#

if [ -e "${ORACLE_BASE}/oradata/${ORACLE_SID}/.prebuiltdb" ] && [ -n "${ORACLE_PWD}" ] && [ "${ORACLE_PWD}" != "$1" ]; then
      echo "WARNING: The database password can not be changed for this container having a prebuilt database. The original password exists in the container environment. Your new password has been ignored!"
      exit 1
fi

ORACLE_PWD=$1
ORACLE_SID="$(grep "$ORACLE_HOME" /etc/oratab | cut -d: -f1)"
if [ "$ORACLE_SID" == "FREE" ]; then
  ORACLE_PDB="FREEPDB1"
fi
ORACLE_PDB=${ORACLE_PDB:-ORCLPDB1}
ORACLE_PDB=${ORACLE_PDB^^}
ORAENV_ASK=NO
source oraenv

sqlplus / as sysdba << EOF
      ALTER USER SYS IDENTIFIED BY "$ORACLE_PWD";
      ALTER USER SYSTEM IDENTIFIED BY "$ORACLE_PWD";
      ALTER SESSION SET CONTAINER=$ORACLE_PDB;
      ALTER USER PDBADMIN IDENTIFIED BY "$ORACLE_PWD";
      exit;
EOF

입력한 패스워드로 시스템 유저들 패스워드를 설정하는 스크립트임





cdb 접속 후 버전 확인

bash-4.4$ sqlplus sys/oracle@localhost:1521/FREE as sysdba

SQL*Plus: Release 23.0.0.0.0 - for Oracle Cloud and Engineered Systems on Sat Aug 31 13:23:14 2024
Version 23.5.0.24.07

Copyright (c) 1982, 2024, Oracle.  All rights reserved.


Connected to:
Oracle Database 23ai Free Release 23.0.0.0.0 - Develop, Learn, and Run for Free
Version 23.5.0.24.07

SQL> show con_name

CON_NAME
------------------------------
CDB$ROOT

SQL> select instance_name, status, version from v$instance;

INSTANCE_NAME    STATUS       VERSION
---------------- ------------ -----------------
FREE             OPEN         23.0.0.0.0





pdb 접속 후 버전 확인

bash-4.4$ sqlplus sys/oracle@localhost:1521/FREEPDB1 as sysdba

SQL*Plus: Release 23.0.0.0.0 - for Oracle Cloud and Engineered Systems on Sat Aug 31 13:21:49 2024
Version 23.5.0.24.07

Copyright (c) 1982, 2024, Oracle.  All rights reserved.


Connected to:
Oracle Database 23ai Free Release 23.0.0.0.0 - Develop, Learn, and Run for Free
Version 23.5.0.24.07

SQL> show con_name

CON_NAME
------------------------------
FREEPDB1

SQL> select instance_name, status, version from v$instance;

INSTANCE_NAME    STATUS       VERSION
---------------- ------------ -----------------
FREE             OPEN         23.0.0.0.0





도커 오라클 삭제

도커 컨테이너 이름 확인

PS> docker ps
CONTAINER ID   IMAGE                                                COMMAND                   CREATED          STATUS                    PORTS      NAMES
fc2c383a9cb1   container-registry.oracle.com/database/free:latest   "/bin/bash -c $ORACL…"   21 minutes ago   Up 21 minutes (healthy)   1521/tcp   oracle





컨테이너 정지

PS> docker stop fc2c383a9cb1
fc2c383a9cb1





컨테이너 삭제

PS> docker rm fc2c383a9cb1
fc2c383a9cb1





도커 컨테이너 재확인

PS> docker ps
CONTAINER ID   IMAGE     COMMAND   CREATED   STATUS    PORTS     NAMES

정상적으로 제거됨





다시 오라클 bash 접속을 시도하면 컨테이너가 없다고 나옴

PS> docker exec -it oracle bash
Error response from daemon: No such container: oracle





참고1

도커 환경에 설치해본게 처음인데 bash 에 들어왔을때 os 버전을 확인해보니 redhat 8.10 이었음

PS> docker exec -it oracle bash

bash-4.4$ cat /etc/redhat-release
Red Hat Enterprise Linux release 8.10 (Ootpa)

bash-4.4$ uname -a
Linux fc2c383a9cb1 5.15.153.1-microsoft-standard-WSL2 #1 SMP Fri Mar 29 23:14:13 UTC 2024 x86_64 x86_64 x86_64 GNU/Linux





참고2

오라클 엔진은 /opt/oracle 밑에 설치됨

bash-4.4$ cd $ORACLE_HOME
bash-4.4$ pwd
/opt/oracle/product/23ai/dbhomeFree
bash-4.4$ ls
LICENSE     cfgtoollogs  data         has            jdk   network      oracore  python         sdk       ucp
OPatch      clone        dbs          hs             jlib  nls          ord      racg           slax      usm
QOpatch     crs          deinstall    install        ldap  odbc         oss      rdbms          sqlcl     utl
R           crypto       demo         instantclient  lib   olap         oui      relnotes       sqlj      xdk
addnode     css          diagnostics  inventory      log   oml4py       perl     root.sh        sqlpatch
assistants  ctx          dv           javavm         md    opmn         plsql    runInstaller   sqlplus
bin         cv           env.ora      jdbc           mgw   oraInst.loc  precomp  schagent.conf  srvm
